PRODUCT ID
1082
Sale Status
SOLD
MAKE
WHACHEON
MODEL
HL-460
In-page Image(s)

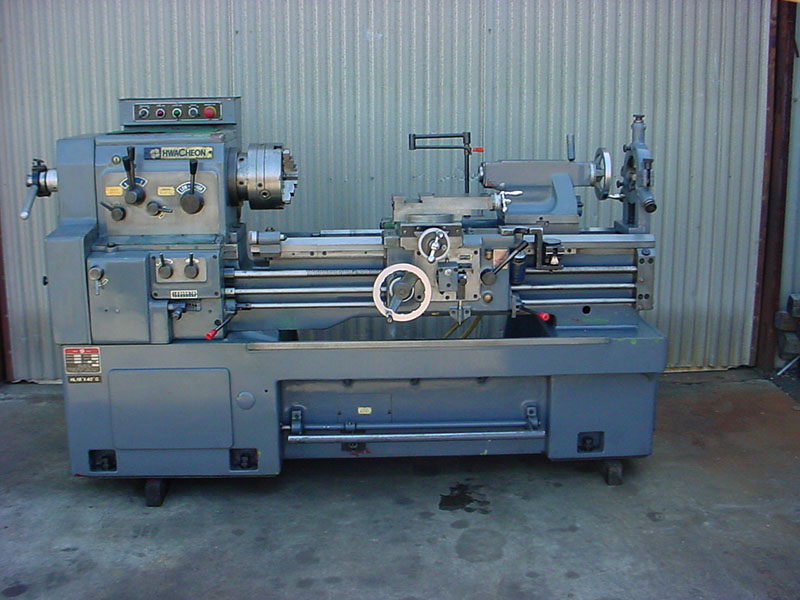

![WHACHEON HL - 460 All Original](/sites/default/files/2018-05/18x40%20LA%20006.jpg)

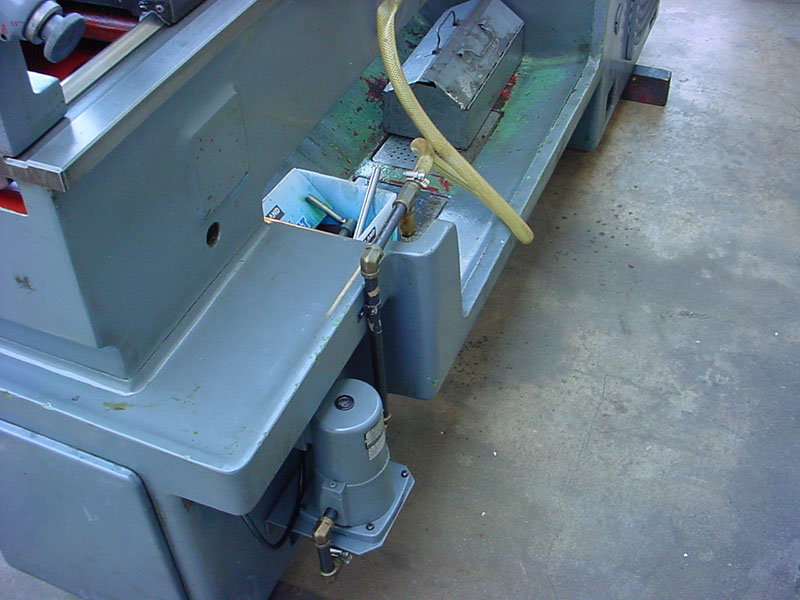

![WHACHEON HL - 460 All Original](/sites/default/files/2018-05/18x40%20LA%20005.jpg)

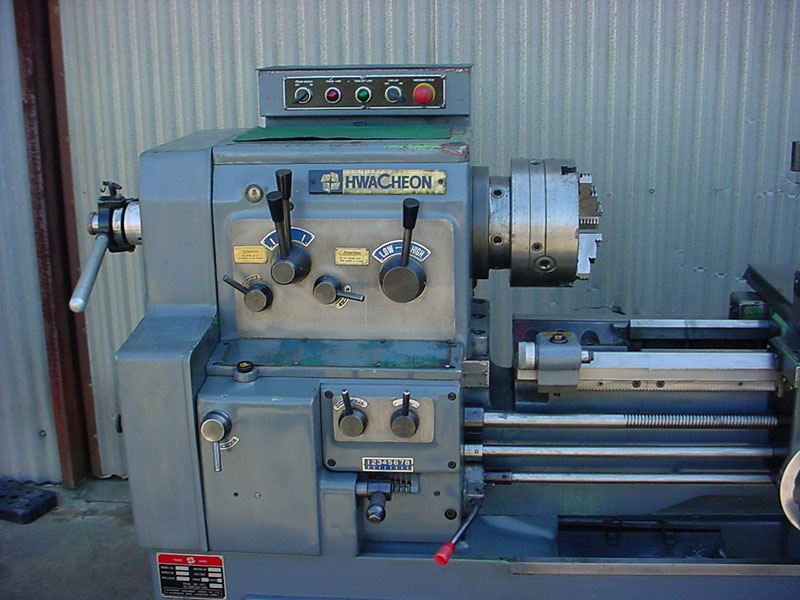

![WHACHEON HL - 460 All Original](/sites/default/files/2018-05/18x40%20LA%20007.jpg)

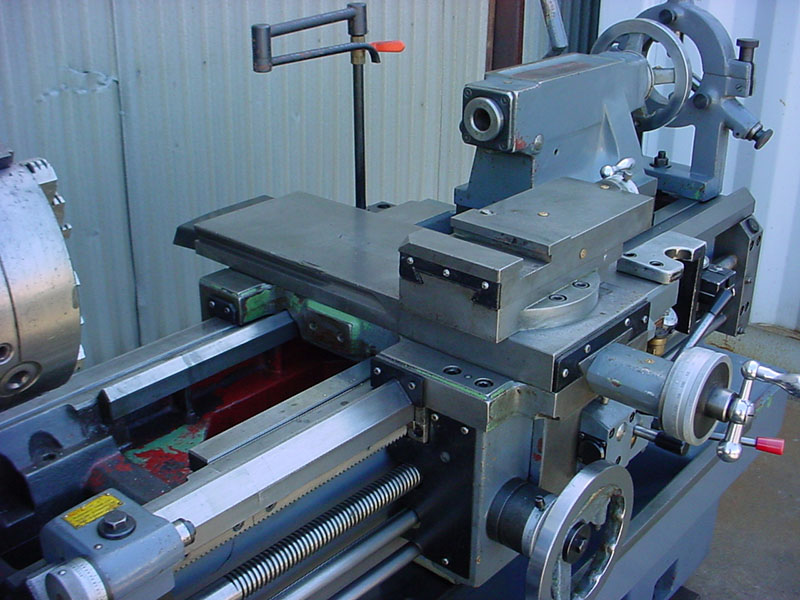

![WHACHEON HL - 460 All Original](/sites/default/files/2018-05/18x40%20LA%20008.jpg)

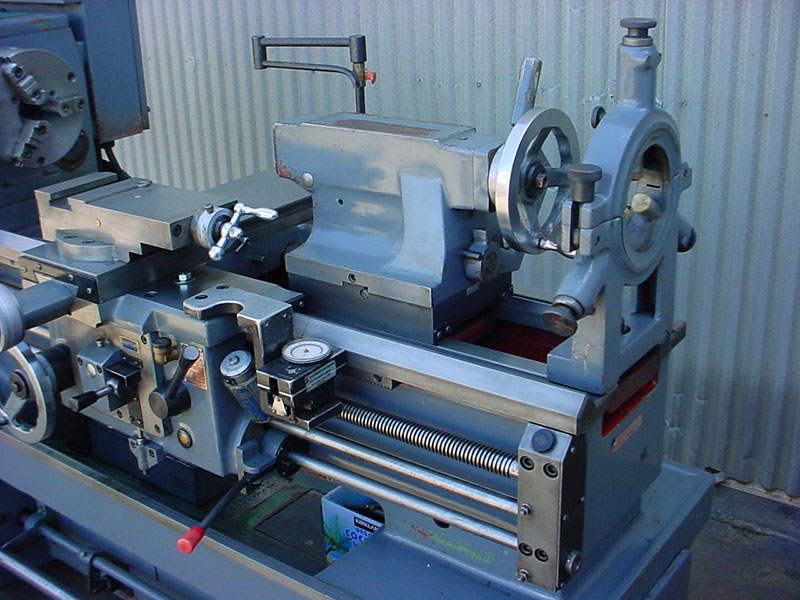

![WHACHEON HL - 460 All Original](/sites/default/files/2018-05/18x40%20LA%20009.jpg)

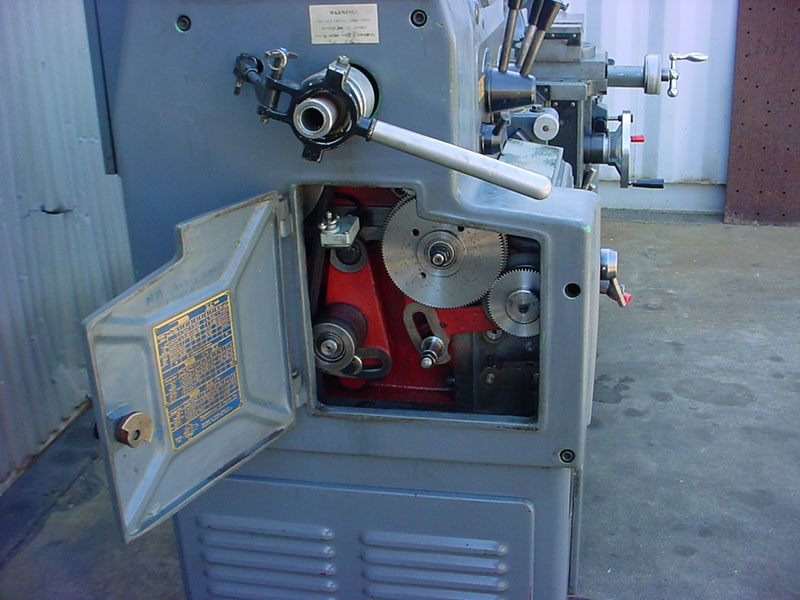

![WHACHEON HL - 460 All Original](/sites/default/files/2018-05/18x40%20LA%20010.jpg)
SWING
18 IN 25 IN IN THE GAP
CENTERS
40 IN
MOTOR
7.5 HP 220---440 VOLTS 3 PHASE
SPINDLE
1-6 cam-loc
SPEEDS
(12) 32----1800/td>
THREADS
Inch / metric
TAIL STOCK
# 4 MORSE TAPER
DIMENSIONS
36IN WIDE 40IN TALL 7 FT LONG
WEIGHT
4700 LBS
OPTIONAL TOOLING:
12 in. 4 jaw chuck 10in. 3 jaw adjust tru (Buck) face plate, drive plate . All direct mount,, coolant quick change tool post & holders 72 T change gear, 4 way tool post, sready rest This lathe was not in a production shop 6 months warranty can inspect under power.
